LoadChartResourceListView Control

LoadChartResourceListView control is used to display and update a list of resource items using a grid view and an attached Load Chart, and it is part of Project Management Library for WPF 4, Project Management Library for WPF 3.5, Gantt Chart Library for WPF 4, and Gantt Chart Library for WPF 3.5.

Screenshots and Intro Source Code

Basic usage:

<pdgcc:LoadChartResourceListView>
    <pd:ResourceItem Content="Resource 1" CostPerUsage="100" CostPerHour="10"/>
    <pd:ResourceItem Content="Resource 2" CostPerHour="20"/>
    [...]
    <pdgcc:LoadChartResourceListView.AssignableTaskItems>
        <pd:TaskItem Content="Task 1" IndexString="1"/>
        [...]
        <pd:TaskItem Content="Task 2" IsExpanded="True" IndexString="6"/>
        <pd:TaskItem Content="Task 2.1" Indentation="1" Start="{x:Static sys:DateTime.Today}" Effort="16:00:00"                      IsCompleted="True" IndexString="7"/>
        <pd:TaskItem Content="Task 2.2" Indentation="1" Start="{x:Static sys:DateTime.Today}" Effort="08:00:00"                      CompletedEffort="06:00:00" IndexString="8"/>
        <pd:TaskItem Content="Task 2.3" Indentation="1" IsExpanded="True" IndexString="9"                      PredecessorsString="8"/>
        <pd:TaskItem Content="Task 2.3.1" Indentation="2" Start="{x:Static sys:DateTime.Today}"                      Effort="1.16:00:00" IndexString="10" Cost="2000"/>
        <pd:TaskItem Content="Task 2.3.2" Indentation="2" Start="{x:Static sys:DateTime.Today}"                      Effort="08:00:00" IndexString="11" PredecessorsString="10"/>
        <pd:TaskItem Content="Task 3" Start="{x:Static sys:DateTime.Today}" Effort="12:30:00"                      CompletedEffort="02:30:00" IndexString="12" PredecessorsString="9, 11SS+12"/>
        <pd:TaskItem Content="Task 4" Start="{x:Static sys:DateTime.Today}" Effort="16:00:00"                      AssignmentsString="Resource 1" IndexString="13"/>
        <pd:TaskItem Content="Task 5" Start="{x:Static sys:DateTime.Today}" Effort="20:00:00"                      AssignmentsString="Resource 1, Resource 2 [50%]" IndexString="14"/>
        <pd:TaskItem Content="Task 6" Start="{x:Static sys:DateTime.Today}" IsMilestone="True" IndexString="15"                      PredecessorsString="14+2"/>
        [...]
    </pdgcc:LoadChartResourceListView.AssignableTaskItems>
</pdgcc:LoadChartResourceListView>

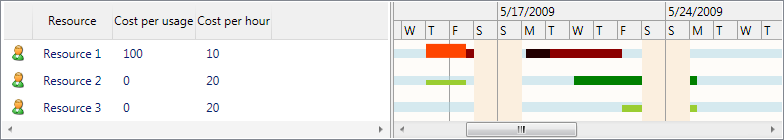

Custom appearance:

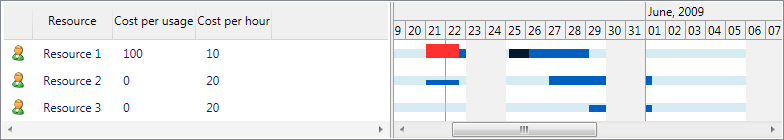

Month scale:

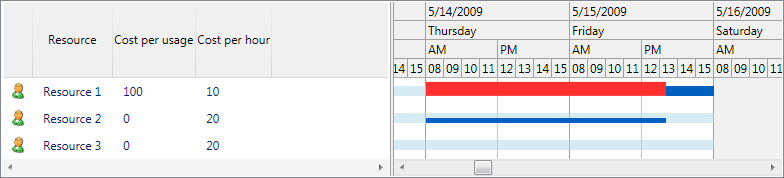

Custom scale:
Continuous schedule:

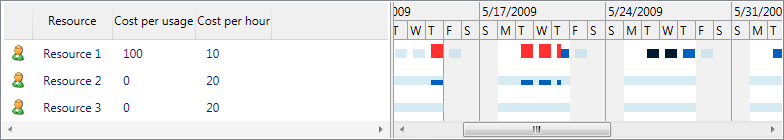

Custom schedule:

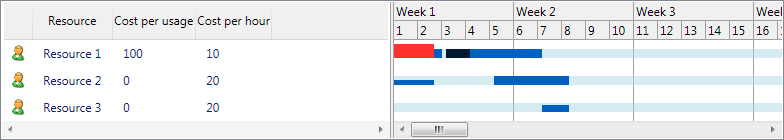

Numeric days:

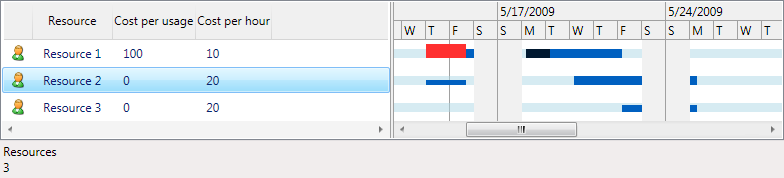

Statistics:
Commands:

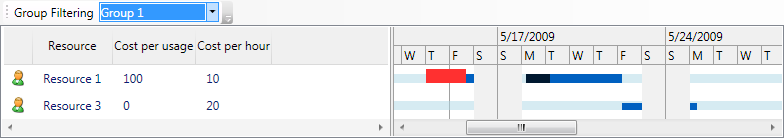

Group filtering:

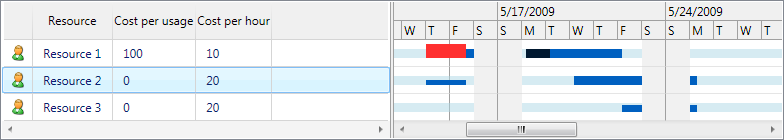

Grid lines:

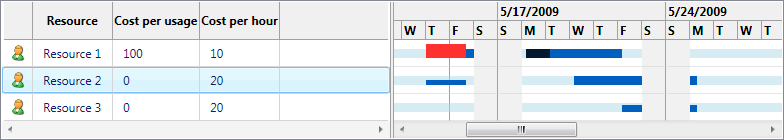

Control templating
(based on Generic and/or other themes from default Gantt Chart controls styles and templates archive):
