DlhSoft Project Management Library
for Windows® Presentation Foundation (WPF) and .NET 3.5 SP1
|
TaskListView Control
TaskListView control is used to display and update a list of task items using a grid view, and it is part of Project Management Library (WPF 3.5).
Features
-
Very similar in appearance, behavior, and development related features with the standard ListView control;
-
Allows the developer to data bind or disable data binding of task indentation, start date and time, effort, completed effort, assignments, predecessors, cost, and expansion values to custom data item members by setting or clearing the appropriate MemberPath properties;
-
Allows the developer to use an external TaskManager class instance as the core task management business logic provider within the control;
-
Allows the end users to add and remove tasks, expand and close tasks, increment or decrement task indentation, and update existing task values, excepting the case that these features are disabled by the developer, by setting the appropriate ReadOnly properties to true manually;
-
Uses the current culture (language and region) set by the end user (using the Regional and Language Options) for displaying and retrieving values such as numbers or dates and times, excepting the case that the running thread culture was set by the developer to a specific culture information object manually;
-
Uses the current theme provided by the operating system (Aero, Luna, etc.) or configured by the end user (when such option is available), excepting the case that the developer has customized the user interface properties values manually.
Screenshots
-
Basic usage:
-

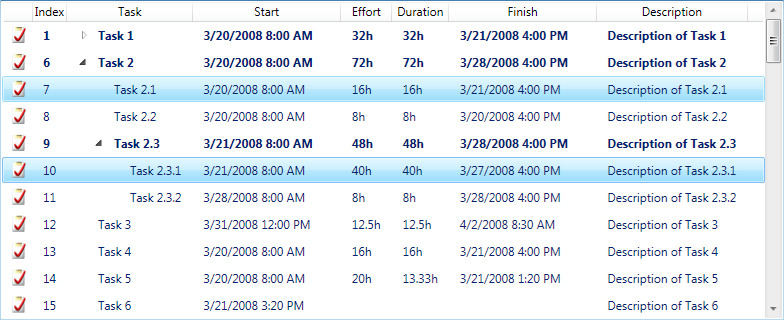

Custom data binding:
-

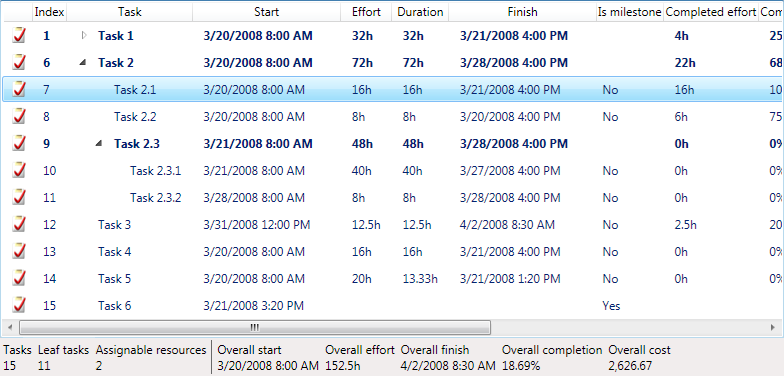

Statistics:
-

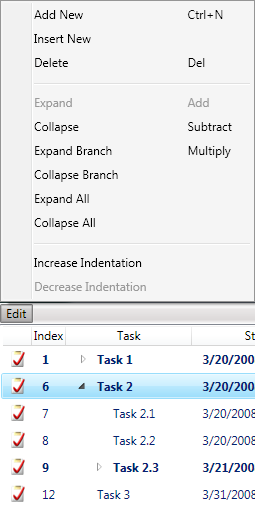

Commands:
-

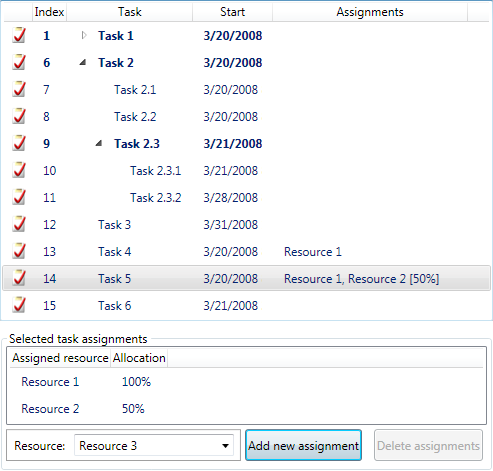

Assignments:
-

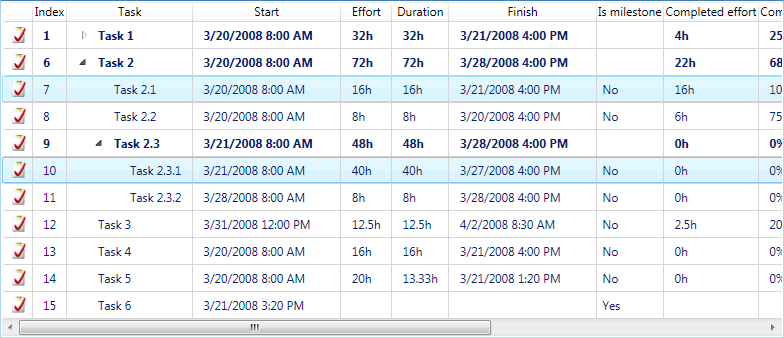

Grid lines:
-
Control templating:
