ScheduleChartView

for WPF & .NET 4+ / .NET Core 3.1 / .NET 5 and Silverlight™ 4+
New: WPF .NET Core/.NET 5 support: with NuGet!

Run demos Demo source code NuGet package Reference

ScheduleChartView component displays and manages resource assignments using a data grid and an attached interactive Gantt Chart displaying multiple task bars on the same resource line and accepting horizontal and vertical drag and drop operations for scheduling task bars and changing assignments. Supports custom appearance settings for tasks for the entire chart or for individual items, as needed, inheriting core features and behavior from GanttChartView component.

ScheduleChartDataGrid component provides the same core features and behavior that ScheduleChartView offers, adding a synchronized data grid to allow end users to view and manage item values in an alternative fashion as well.

Demo

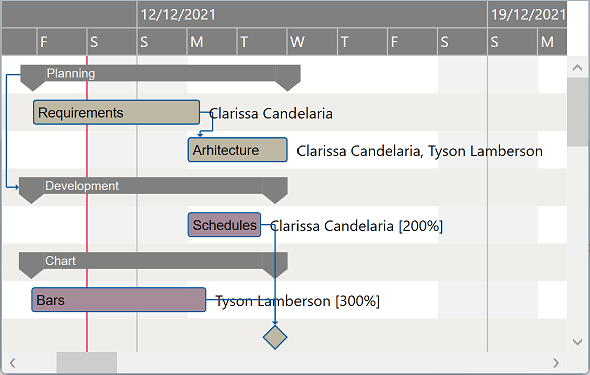

Screenshot
